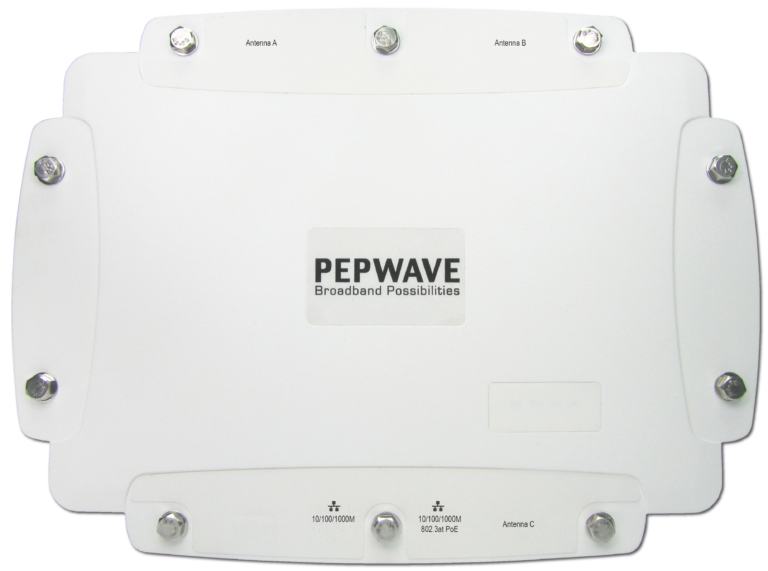

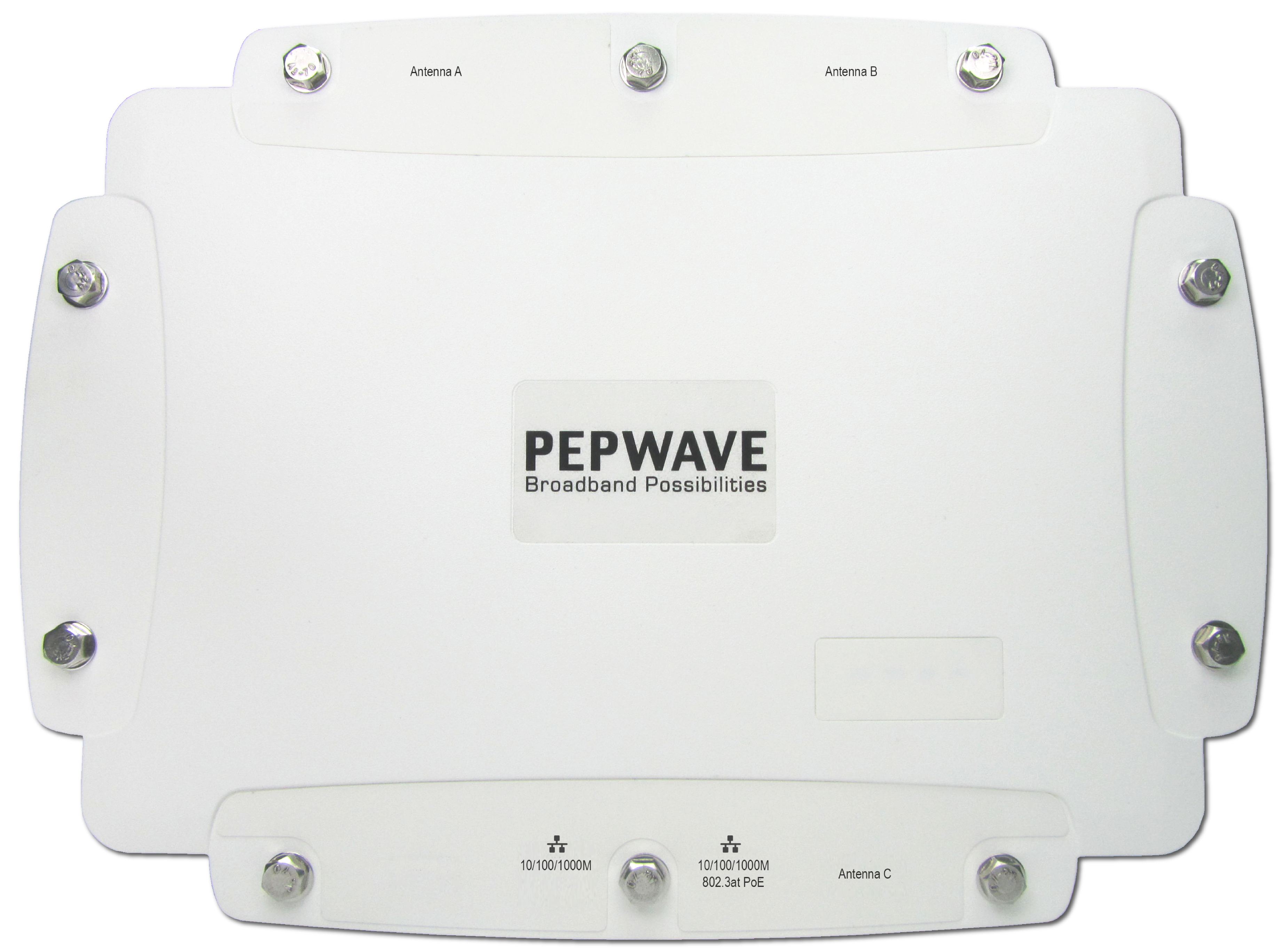

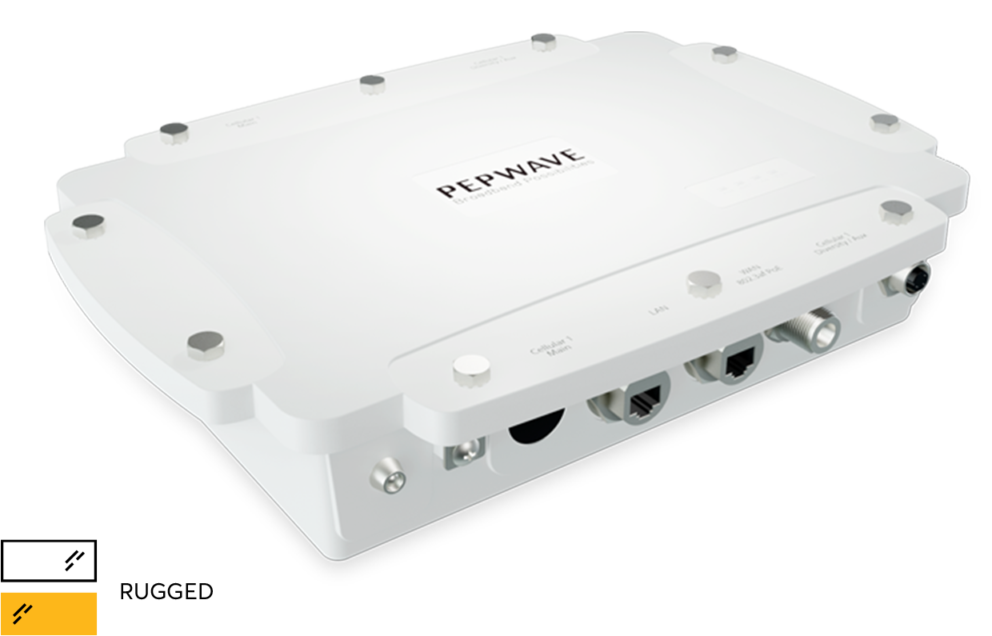

AP Pro AC
Deliver fast and reliable Wi-Fi in even the harshest conditions with the AP Pro AC . The AP Pro’s sealed, all-metal IP67 enclosure stands up to dirt, water, and extreme temperatures for years of dependable operation in industrial, public safety, transport, and other applications. Built-in PoE gives you more installation options and reduces deployment costs. And intuitive console- and cloud-based control makes configuration and maintenance simple for everyone.
Use Cases
Marine Connectivity
Full onboard Wi-Fi network coverage for crew members
Construction Site Connectivity
Extended Wi-Fi coverage across the site ensures security, connectivity back to the corporate network
Industrial Connectivity
Offer reliable long-range wireless coverage for harsh indoor environments
Sample Topology, Construction Site Connectivity
Simultaneous Dual Band
Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi on the AP One Pro AC gives you two independent networks that work together, so all of your devices can connect without clashing.
Robust Carrier-Grade Enclosure
The AP Pro AC is designed and manufactured with the strictest standards. Built from rugged electronics and tough aircraft-grade aluminum enclosure to seal against water and dust, the AP Pro AC handles just about anything the factory floor, construction site, or Mother Nature can dish out. The device can also withstand temperatures from -40° to 65°C, and it’s protected against ESD and surges, so it stays up and running in conditions that would quickly shut down other access points.
Centralized Management

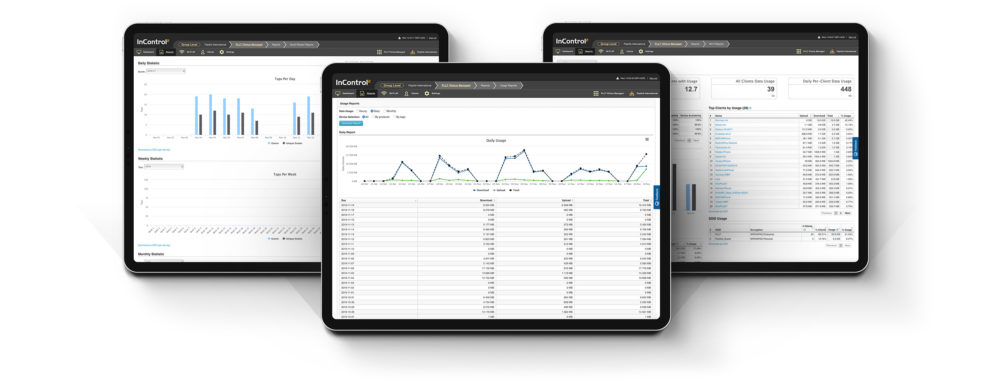

The AP Pro AC features Peplink’s WLAN Controller for quick and simple onsite setup and configuration. Not onsite? Not a problem. Just open a Web browser and take control anywhere with our cloud-based InControl configuration and administration solution.
Complete Network Solution
Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.
-
AP Pro AC Ap Pro Duo AP Pro 300M Ethernet Port 2x GE 1x GE 1x GE Wi-Fi Standard 802.11 a/b/g/n/ac
802.11 a/b/g/n
802.11 a/b/g/n
Data Rates 3 x 3 MIMO
2.4 GHz: 450 Mbps
5 GHz: 1300 Mbps2X2 MIMO
2.4 GHz: 300 Mbps
5 GHz: 300 Mbps2X2 MIMO
2.4 GHz: 300 Mbps
5 GHz: 300 MbpsSimultaneous
2.4GHz and 5GHzYes Yes 2.4 GHz or 5 GHz Wi-Fi Transmit Power 2412-2472 MHz: 24 dBm (FCC) / 17 dBm (CE)
5180-5825 MHz: 22 dBm (FCC) / 17 dBm (CE)2412-2472 MHz: 26 dBm (FCC) / 20 dBm (CE)
5180-5825 MHz: 25 dBm (FCC) / 20 dBm (CE)2412-2472 MHz: 26 dBm (FCC) / 20 dBm (CE)
5180-5825 MHz: 25 dBm (FCC) / 20 dBm (CE)Recommended Concurrent Users Per Radio 60 60 60 Number of SSID Per Radio 16 16 16 Antenna Type 3 x Female N-Type Connectors 4 x Female N-Type Connectors 2 x Female N-Type Connectors Enclosure IP67 Outdoor Metal Enclosure IP67 Outdoor Metal Enclosure IP67 Outdoor Metal Enclosure Dimensions 9.0 x 12.2 x 2.6 inches | 230 x 310 x 66 mm 9.0 x 12.2 x 2.6 inches | 230 x 310 x 66 mm 9.0 x 12.2 x 2.6 inches | 230 x 310 x 66 mm Weight 5.84 pounds | 2.65 kg 5.84 pounds | 2.65 kg 5.84 pounds | 2.65 kg PoE Input Device: 12V – 36V DC
Power over Ethernet 802.3afDevice: 10V – 30V DC, 3A
Power over Ethernet 802.3afPower over Ethernet 802.3at Power Consumption 13W (max.) 25.5W (max.) 13W (max.) Operating Temperature -40° – 149°F | -40° – 65°C -40° – 149°F | -40° – 65°C -40° – 149°F | -40° – 65°C Humidity 15% – 95% (non-condensing) 15% – 95% (non-condensing) 15% – 95% (non-condensing) Certifications FCC, RoHS FCC, CE, RoHS FCC, CE, RoHS -
Network Bridge Mode
Router (NAT) Mode
Wireless Distribution System (WDS on 2.4GHz Only)
Support for PPPoE, Static IP, DHCP
Management VLAN (802.1p)
Spanning Tree Protocol (802.1d)
Radio Multiple SSID
Auto Channel Selection
Transmit Power Adjustment
Neighbor AP Detection
AP Security Open
WPA/WPA2/WPA3-Personal
WPA/WPA2-EnterpriseDevice Management Web Administrative Interface
InControl Cloud Management
Peplink AP Controller
SNMP v1, v2c and v3
Client Management Multicast Filter
IGMP Snooping/Multicast EnhancemenClient Management per SSID VLAN with QoS (802.1p/802.1q)
Bandwidth Control
MAC Address Filtering
Layer 2 Client Isolation
Limit on Max. Number of Client
Client Management per Client VLAN with RADIUS
VLAN with VLAN Pool
Bandwidth Control
Complete VPN Solution SpeedFusion VPN Site-to-Site VPN
256-bit AES Encryption
Pre-shared Key Authentication
Dynamic Routing
Captive Portal By InControl
By Peplink AP Controller
Power Requirements Universal Input
100V – 240V AC
All specifications are subject to change without notice.
-
Product Name
Product Code Description AP Pro AC APP-AGN3 Industrial-grade 802.11 a/b/g/n/ac 1750 Mbps simultaneous 2.4 & 5 GHz access point in metallic waterproof and dust-tight IP67 outdoor enclosure.
AP Pro Duo APP-AGN2 Industrial-grade 802.11 a/b/g/n 600 Mbps simultaneous 2.4 & 5 GHz access point in metallic waterproof and dust-tight IP67 outdoor enclosure.
AP Pro 300M APP-AGN Industrial-grade 802.11 a/b/g/n 300 Mbps access point in metallic waterproof and dust-tight IP67 outdoor enclosure.
-
- AP Pro AC
- Waterproof 12V-56V DC Female Connector
- Mounting Kit (ACW-723)
-
Product Code Description ACW-835 Package includes 3x 2.4 GHz and/or 5 GHz 4/6 dBi fiberglass outdoor dual-band Wi-Fi omni antennas ACW-107 Includes 1x 802.3af/at PoE injector ACW-112 Waterproof Ethernet Adaptor SVL-667 1-Year EssentialCare for AP Pro AC SVL-668 2-Year EssentialCare for AP Pro AC ICS-V01-1Y 1-Year InControl 2 Subscription ICS-V01-2Y 2-Year InControl 2 Subscription ECP-D-1Y EssentialCare+ D (1-Year) ECP-D-2Y EssentialCare+ D (2-Year) ECP-D-4Y EssentialCare+ D (4-Year)
