BR2

Rugged, Dual-Cellular Router

for the Most Reliable Remote & Mobile Applications

  Multiple Backup WANs for Added Reliability

Built-in dual-cellular modems plus external WAN options ensures unbreakable connectivity while on the go and in the most remote locations.

Dual-Cellular Modems

+

Ethernet WAN

USB WAN

  Simple Installation for Mass Deployments

For truly remote and industrial applications, its built-in eSIM and remote SIM configuration allows for zero-truck-roll provisioning, configuration and management.

Remotely manage and configure all devices in your network with InControl and InTouch . No pre-staging configurations necessary.

Eliminate truck rolls

Build in eSIM

Central Management

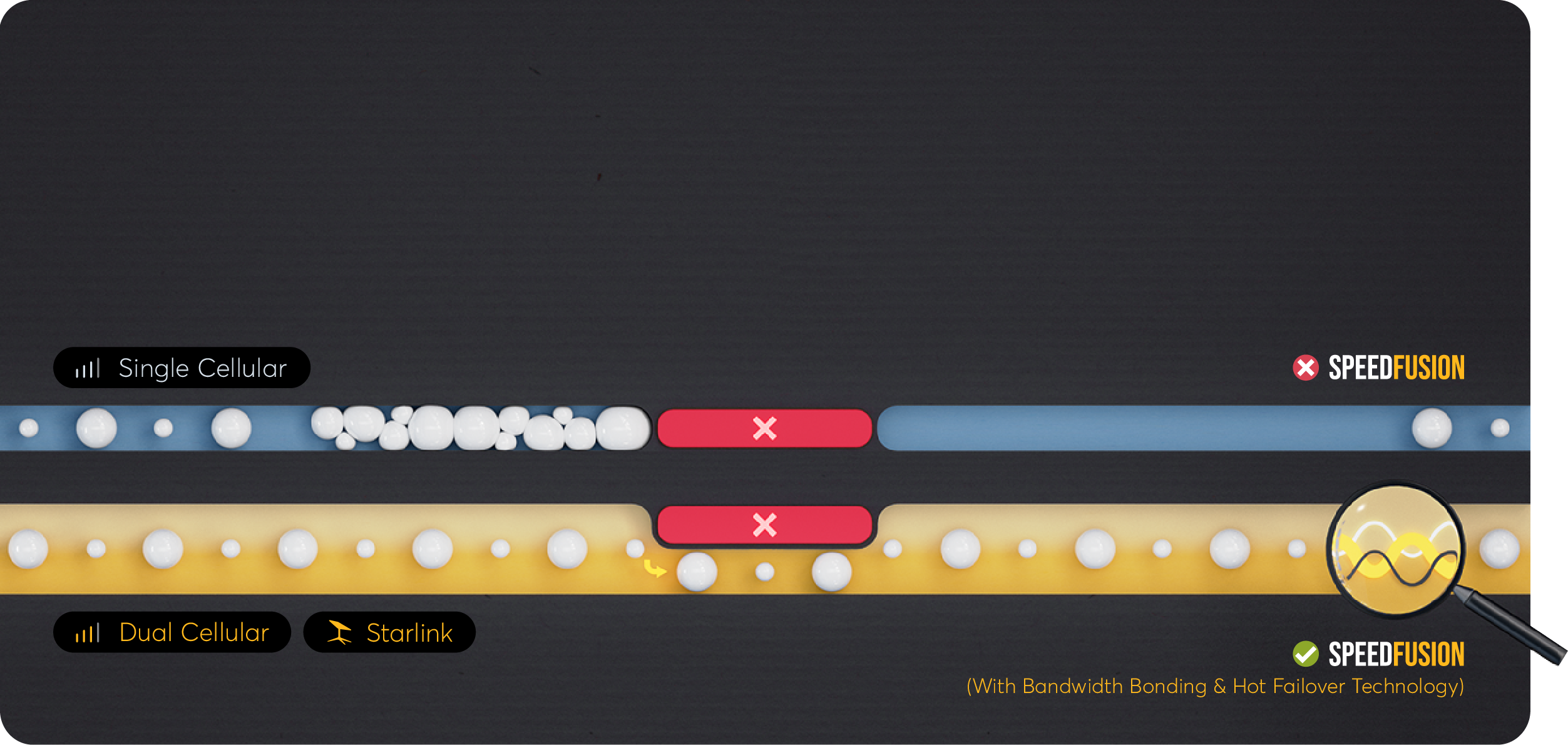

  Advanced SpeedFusion Technology

SpeedFusion technology seamlessly bonds multiple Internet connections into a single more-reliable Internet feed achieve zero interruption.

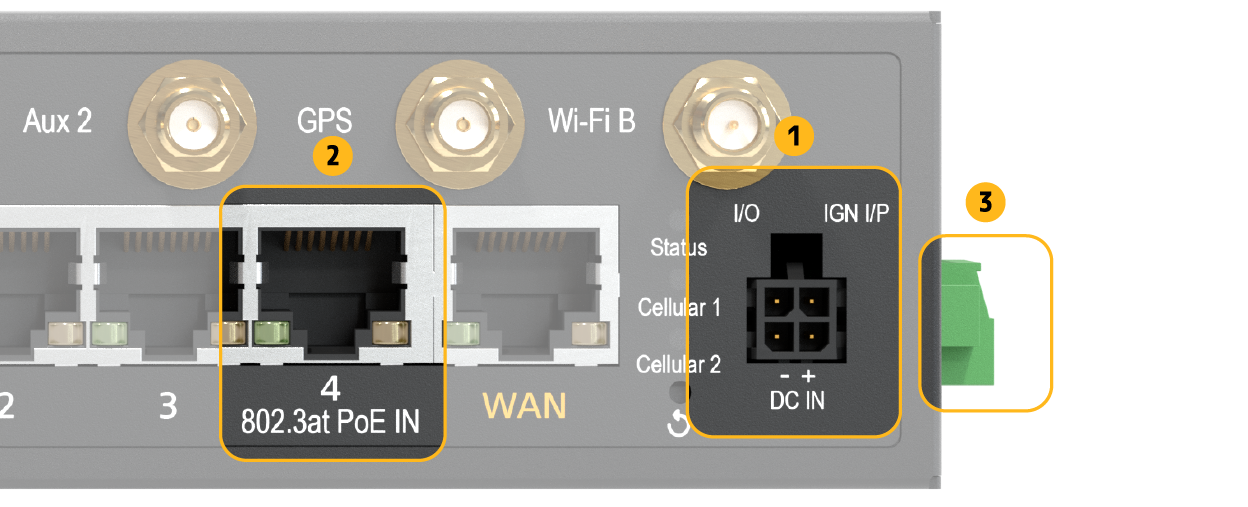

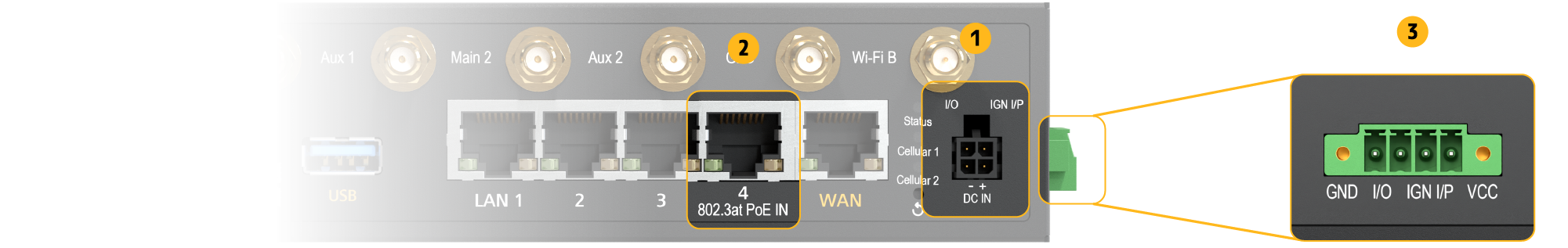

  Flexible Power and Port Options

The BR2 supports a fanless design that can be powered in three different ways:

  Micro-Fit Connector Power Port compatible with standard AC Power Adapter or our Peplink cable adapters for various power sources.

  PoE IN

  Terminal Block Power Connector for Mobile Deployment, 12V-30V DC

  PoE IN

  Micro-Fit Connector Power Port compatible with standard AC Power Adapter or our Peplink cable adapters for various power sources.

  Terminal Block Power Connector for Mobile Deployment, 12V-30V DC

-40°F

Ruggedized Metal Enclosure

that stays operational across a wide temperature range

149°F

Ruggedized Metal Enclosure

that stays operational across a wide temperature range

-40°F

149°F

Highly cost-effective, even for massive deployments.

$599

Ports and Connections

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingMultiple Outbound Policy Algorithms
    • Weighted Balance
    • Priority
    • Overflow
    • Persistence
    • Least Used
    • Lowest Latency
    • Enforced
    • Fastest Response Time
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN/SpeedFusion
    • Hot Failover
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    X.509 Certificate Support
    IPsec VPN (Network-to-Network) ^
    Advanced QoSIndividual Bandwidth Limit
    Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive Portal SupportSupport for Wired LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl 2 Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    ^   IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  • Product CodeEmbedded ModemRegionLTE Bands3G Bands
    MAX-BR2-LTE-US-T-PRM2 x CAT-4
    North America*


    *US Carrier Certifications: AT&T, T-Mobile,
    Verizon, FirstNet
    B2, B4, B5, B12, B13, B14, B66, B71B2, B4, B5
    MAX-BR2-LTE-E-T-PRM2 x CAT-4
    APAC, EMEAB1, B3, B5, B7, B8, B20, B38, B40, B41B1, B5, B8
    MAX-BR2-LTE-EJ-T-PRM2 x CAT-4
    JapanB1, B3, B8, B18, B19, B26, B41B1,B6, B8, B19
    MAX-BR2-LTE-MX-T-PRM2 x CAT-4
    Latin AmericaB1, B2, B3, B4, B5, B7, B8, B28, B40B1, B2, B3, B4, B5, B8
    MAX-BR2-LTEA-US-T-PRM2 x CAT-7North America*


    *US Carrier Certifications: AT&T, T-Mobile,
    Verizon, FirstNet
    B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71B2, B4, B5



  • Product CodeDescriptions
    PRM-B-1Y / PCP-B-1YPrimeCare B / PrimeCare+ B (1-Year)
    PRM-B-2Y / PCP-B-2YPrimeCare B / PrimeCare+ B (2-Year)
    PRM-B-4Y / PCP-B-4YPrimeCare B / PrimeCare+ B (4-Year)
    ACW-63410ft / 3m DC Power Cable
    ACW-643Vehicle Cigarette to Molex Power Cable
    ACW-791Peplink 4-Pin Micro-Fit to USB-C Power Cable
    ANT-MB-42G-S-B-6Mobility 42G - 4x4 MIMO Cellular and Wi-Fi Antenna System with GPS (Black)
    ANT-MB-42G-S-W-6Mobility 42G - 4x4 MIMO Cellular and Wi-Fi Antenna System with GPS (White)
    ANT-SLM-40G-S-B-6Slim 40G - 4x4 MIMO Cellular Antenna System with GPS (Black)
    ACW-DIN-M2MSDIN Rail mount kit
    • 1x BR2
    • 4x LTE Antennas (ACW-237)
    • 2x Dual Band Wi-Fi Antennas (ACW-342)
    • 1x GPS Active Antenna (ACW-232)
    • 1x 12V 2A 4-Pin Power Supply (ACW-632)
