BR2 Micro

Micro Router, Mighty Connectivity
A tiny dual-cellular router that can fit anywhere

$599* MSRP

*Pricing applies to US region only, other regions may vary.

BR2 Micro in the smallest footprint possible

Unbreakable cellular connectivity in the smallest footprint possible

BR2 Micro has Dual Cellular Modems

Dual-cellular modems

BR2 Micro has Built-in Routing

Built-in routing

BR2 Micro has SpeedFusion Technology

SpeedFusion technology
for high reliability connections

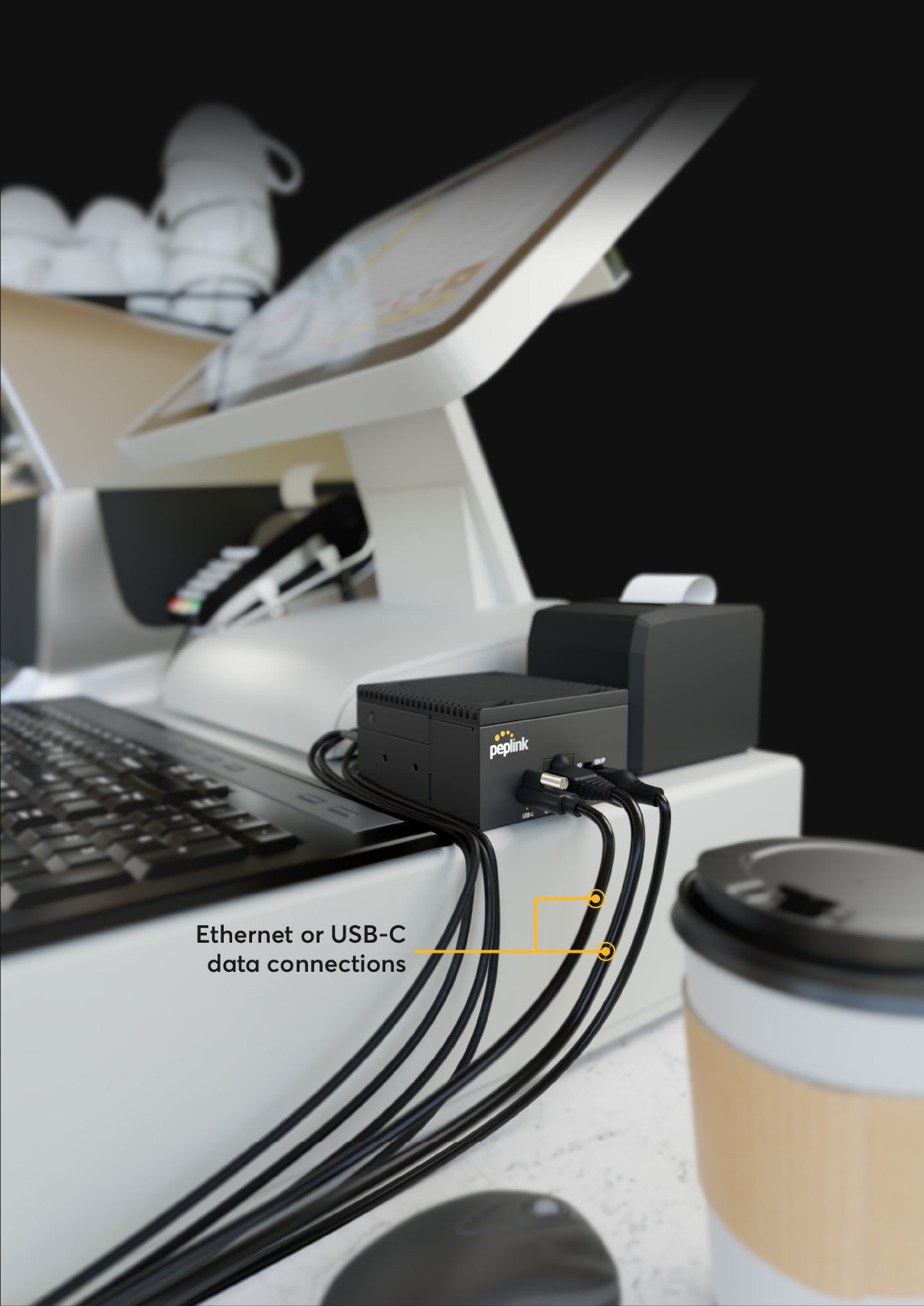

BR2 Micro setup at retail POS, showing it fits virtually anywhere

Reliable routing that fits virtually anywhere

Smaller than a stack of 3 decks of cards, the BR2 Micro fits where no others can.

BR2 Micro has instant configurability and remote device management with Peplink InControl and InTouch

Instant Configurability

Built-in eSIM enables zero-touch provisioning, configuration and management.

BR2 Micro And Peplink eSim

Remote Device Management

Peplink InControl and InTouch eliminates the need for pre-staging configurations.

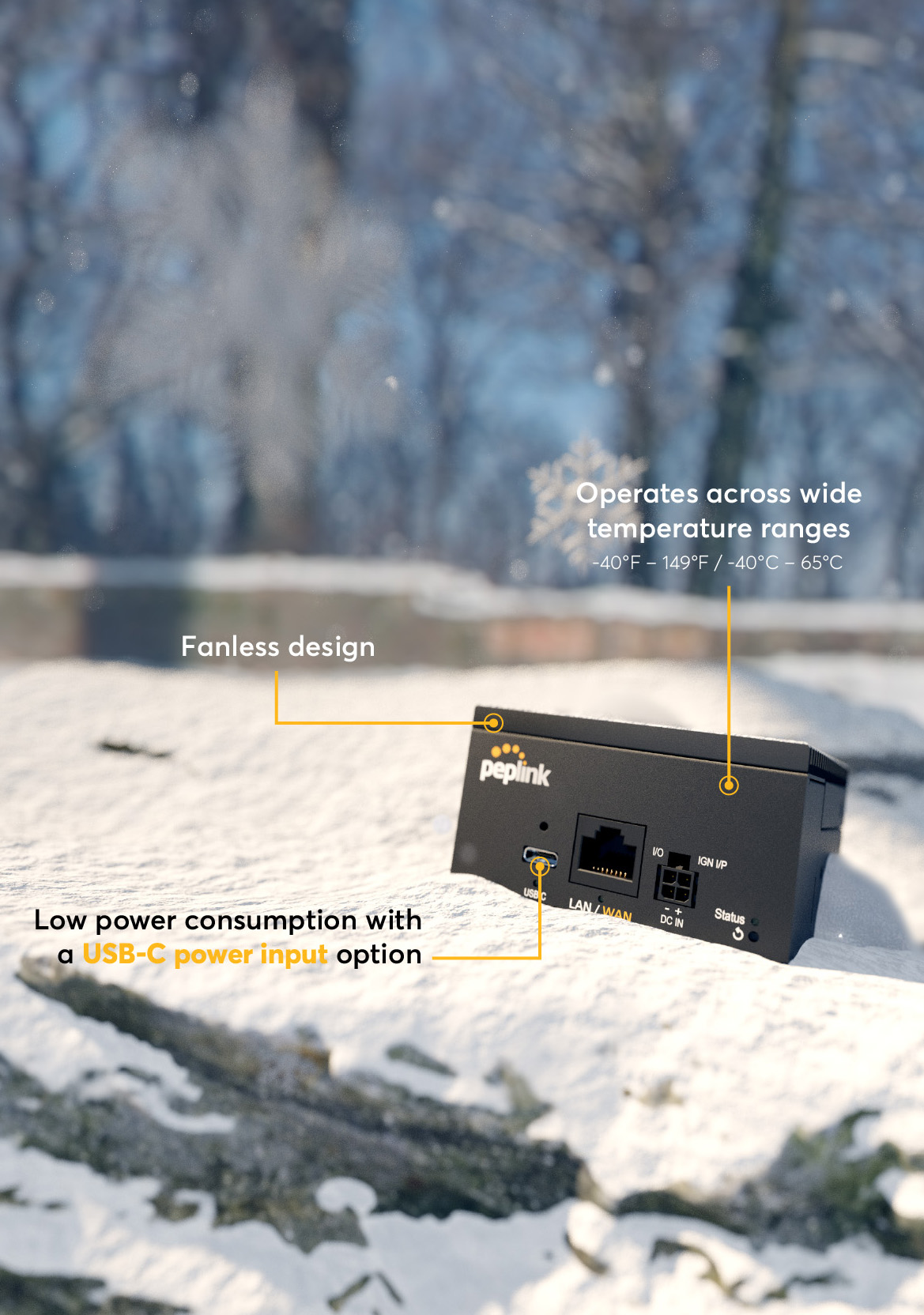

BR2 Micro has ruggedized metal enclosure which able to operates across wide temperature ranges

Ruggedized Metal Enclosure

with flexible, low power options

Cost-effective and Scalable for Mass Deployment

$599*

*Pricing applies to US region only, other regions may vary.

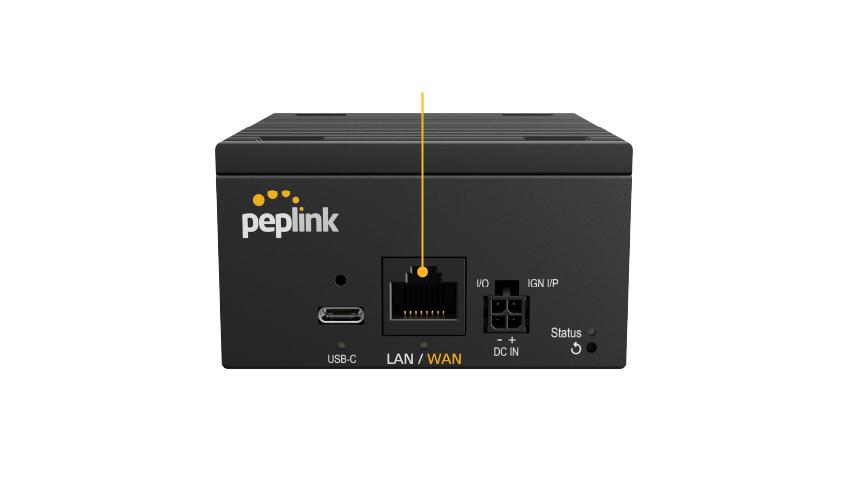

Port and Connections

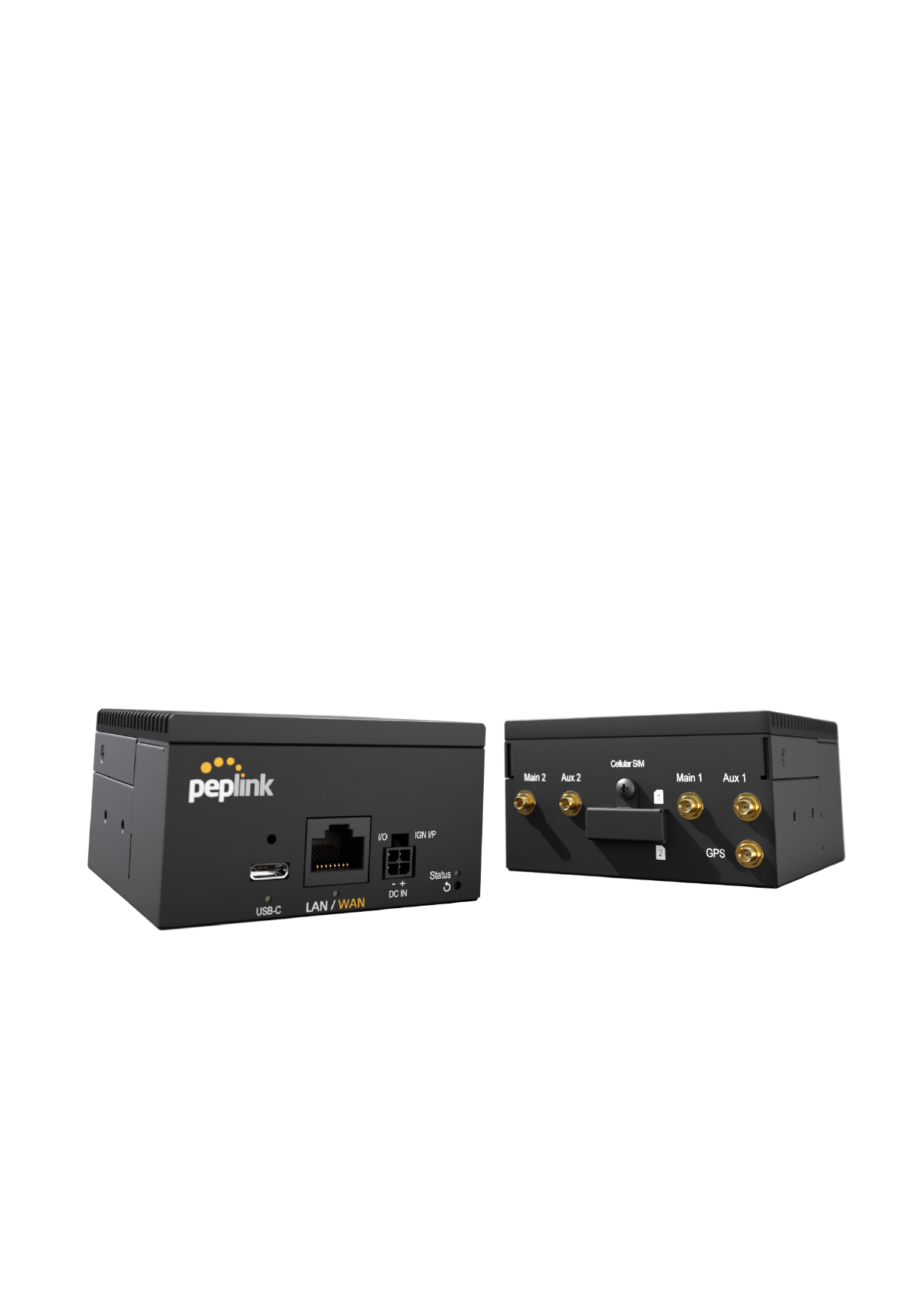

BR2 Micro Spec Front BR2 Micro Spec Back
×
Product Image

Model:

Buy Online

  • Product Overview

  •
    SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingMultiple Outbound Policy Algorithms
    • Weighted Balance
    • Priority
    • Overflow
    • Persistence
    • Least Used
    • Lowest Latency
    • Enforced
    • Fastest Response Time
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN/SpeedFusion
    • Hot Failover
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    X.509 Certificate Support
    IPsec VPN (Network-to-Network) ^
    Advanced QoSIndividual Bandwidth Limit
    Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive Portal SupportSupport for Wired LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl 2 Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    ^   IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  • Product CodeEmbedded ModemRegionLTE Bands3G Bands
    MAX-BR2-MICRO-LTE-US-PRM2 x CAT-4
    		North America*


    *US Carrier Certifications: AT&T, T-Mobile,
    Verizon, FirstNet    		B2, B4, B5, B12, B13, B14, B66, B71B2, B5
    MAX-BR2-MICRO-LTE-E-PRM2 x CAT-4
    		APAC, EMEAB1, B3, B5, B7, B8, B20, B38, B40, B41B1, B5, B8



  • Product CodeDescriptions
    PRM-B-1Y / PCP-B-1YPrimeCare B / PrimeCare+ B (1-Year)
    PRM-B-2Y / PCP-B-2YPrimeCare B / PrimeCare+ B (2-Year)
    PRM-B-4Y / PCP-B-4YPrimeCare B / PrimeCare+ B (4-Year)
    ACW-63410ft / 3m DC Power Cable
    ACW-643Vehicle Cigarette to Molex Power Cable
    ACW-791Peplink 4-Pin Molex to USB-C Power Cable
    BR2-MICRO-ACW-KITBR2 Micro Accessory Kit
    • 4x 3m MMCX to SMA-F Magnetic Cellular Antenna Base (ACW-414)
    • 1x 5m MMCX Magnetic GPS Antenna (ACW-415)
    • 4x Cellular Antenna (ACW-237)
    • 1x BR2 Micro
    • 1x 12V 2A 4 Pin Power Supply (ACW-632)
    • 1x USB-C to USB-C Cable with Screw Locking (ACW-620)
    • 1x USB-C to USB-A Adapter (ACW-622)
    • 4x M2.5 x 3mm Screws
    • 1 pair of Mounting Brackets

  • BR2 Micro Datasheet
